Name:

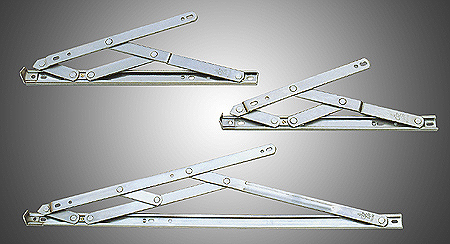

window hinge

Item:

F5701

Description:

The products are conformed to national technical standard GB/T3888-1999 for《aluminum alloy stainless steeI window hinges》.
The heavy-duty friction stay hinge is applicable for large-scale hopper windows and sliding windows,e.g.PVC windows,large-frame aluminum aIloy windows and wooden frame windows. For heavy windows weighed above 32kg,heavy weight frictional stay hinge shall be used to meet safety demand and easily opening/closing,and provide enough force offrication when opening the window.

Technical parameter:

Specification	Length	Length	Length	Length	Length	Casement Width	Arm Width	Max.Door/ Window Height	Max.Door/ Window Width	Max.Door/ Window Weight	Supportive Suspension Strip Thickness	Height	Opening Angle
8"	200	25	136.5	34.5	118	22	19	1500	500	22	2.5±0.2	15±0.5	60°±2°
10"	255	30	183	39	163	22	19	1500	600	25	3.0±0.2	16.5±0.5	88°±2°
12"	300	32	217	47	171	22	19	1500	700	30	3.0±0.2	16.5±0.5	88°±2°
14"	345	32	248	62	209	22	19	1600	750	35	3.0±0.2	16.5±0.5	88°±2°
16"	400	32	238	126	202	22	19	1600	800	38	3.0±0.2	16.5±0.5	88°±2°
18"	450	30	228	186	202	22	19	1800	850	45	3.0±0.2	16.5±0.5	88°±2°
20"	500	30	258.5	225.5	283	22	19	1800	1000	55	3.0±0.2	16.5±0.5	55°±2°
22"	550	30	233	294.5	296	22	19	2200	1000	55	3.0±0.2	16.5±0.5	55°±2°
24"	600	30	206	261.5	352	22	19	2200	1000	55	3.0±0.2	16.5±0.5	55°±2°
