Name:

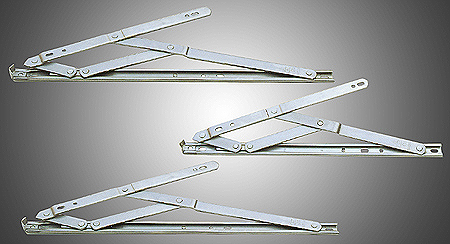

square casement(light-duty)window hinge

Item:

F5702

Description:

The Products Are Conformed To National Technical Standard Gb/t3888-1999 For《aluminum Alloy Stainless SteeI Window Hinge》.
Stainless Steel Window Hinge That Can Support Ceiling/side Hanging Window Shades Are Used For Aluminum Alloy or Plastic Windows,Which Can Open/close Freely At Certain Angle And Position Itself.

Technical parameter:

Specification	Length	Length	Length	Length	Length	Casement Width	Arm Width	Max.Door/ Window Height	Max.Door/ Window Width	Max.Door/ Window Weight	Supportive Suspension Strip Thickness	Height	Opening Angle
8"	200	25	136	35	118	18	16	1000	500	11	2.0±0.2	15±0.5	60°±2°
10"	255	28	183	41	158	18	16	1100	500	16	2.0±0.2	15±0.5	88°±2°
12"	300	30	196	69	169	18	16	1200	600	19	2.5±0.2	15±0.5	88°±2°
14"	345	29	240	70	210	18	16	1400	700	22	2.5±0.2	15±0.5	88°±2°
16"	400	32	209	154	200	18	16	1500	800	25	2.8±0.2	15±0.5	88°±2°
18"	450	29	199	217	203	18	16	1500	900	28	2.5±0.2	15±0.5	88°±2°
20"	500	31	248.5	237	290.5	18	16	1800	1000	32	2.5±0.2	15.5±0.5	85°±2°
22"	550	31	243	291.5	306.5	18	16	1800	1100	32	2.5±0.2	15.5±0.5	85°±2°
24"	600	31	237.5	346	322.5	18	16	1800	1200	32	2.5±0.2	15.5±0.5	85°±2°
